Interplanetary Magnetic Field
The Interplanetary Magnetic Field (IMF) is the Sun's magnetic field, carried through space by the solar wind. Bt is its total strength: the higher it is, the more energy is available for auroras (above 10 nT is good, above 20 nT is strong). Bz is the north-south component and the one that matters most: when it points south (negative) the IMF connects with Earth's magnetic field and lets solar wind energy flow in, so a sustained Bz below about -10 nT strongly favours auroras, while a northward (positive) Bz largely shuts them off. Bx (along the Sun-Earth line) and By (east-west) have a smaller effect: By mainly influences where and how the aurora shows up.
Solar Wind Density: - p/cm3
This chart shows how many protons the solar wind carries per cubic centimetre. Typical values sit between 3 and 10 p/cm3; above 20 p/cm3 the wind is considered dense. A denser wind pushes harder on Earth's magnetosphere, which tends to make auroras brighter, especially when Bz is southward. A sudden jump in density often marks the arrival of a CME shock or of the compressed region ahead of a fast solar wind stream.
Solar Wind Speed: - km/s
This chart shows how fast the solar wind is travelling when it passes the satellite. The quiet background wind blows at roughly 300-450 km/s; above 500 km/s it is elevated and above 700 km/s it is fast, usually because of a coronal hole stream or a CME. A faster wind hits Earth's magnetic field with more energy, raising the chances of aurora, and it also shortens the time the wind takes to travel from the satellite to Earth.
Derived Solar Wind Metrics
WSA-Enlil Solar Wind Prediction
Press play to start animation
Model currently unavailable
EPAM

Low Energy Electrons & Protons - Electron Proton Alpha Monitor (EPAM)

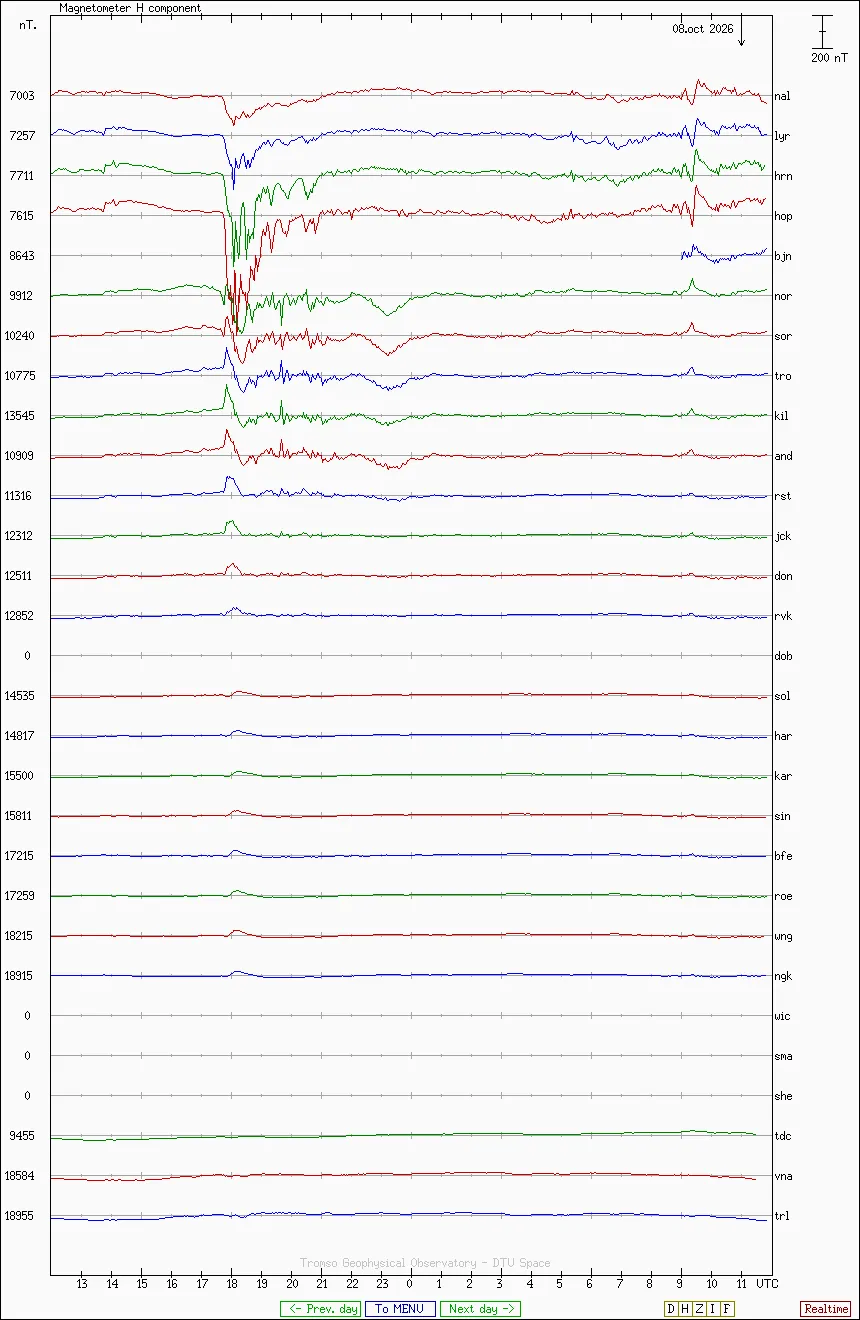

Stackplots

This plot shows several magnetometers that are located in Scandinavia and Central Europe, plus reference stations in the South Atlantic and Antarctica, ranked according to their latitude. When a geomagnetic disturbance starts the most northern magnetometers will respond and as the disturbance strengthens the lower magnetometers will respond as well. Once the stations Dombås (DOB) and Solund (SOL) react, there will be a chance for the European middle latitudes to see aurora low at the northern horizon.
Data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI).
Data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI).
Stations, top to bottom
- NALNy-Ålesund Svalbard78.9°N
- LYRLongyearbyen Svalbard78.2°N
- HRNHornsund Svalbard77.0°N
- HOPHopen Svalbard76.5°N
- BJNBjørnøya (Bear Island) Svalbard74.5°N
- NORNordkapp Norway71.1°N
- SORSørøya Norway70.5°N
- TROTromsø Norway69.7°N
- KILKilpisjärvi Finland69.1°N
- ANDAndenes Norway69.3°N
- RSTRøst Norway67.5°N
- JCKJäckvik Sweden66.4°N
- DONDønna Norway66.1°N
- RVKRørvik Norway65.0°N
- DOBDombås Norway62.1°N
- SOLSolund Norway61.1°N
- HARHarestua Norway60.2°N
- KARKarmøy Norway59.2°N
- SINSindal Denmark57.5°N
- BFEBrorfelde Denmark55.6°N
- ROERømø Denmark55.2°N
- WNGWingst Germany53.7°N
- NGKNiemegk Germany52.1°N
- WICConrad Observatory Austria47.9°N
- SMASanta Maria Azores, Portugal37.0°N
- SHESt. Helena South Atlantic16.0°S
- TDCTristan da Cunha South Atlantic37.1°S
- VNANeumayer Station III Antarctica70.7°S
- TRLTroll Antarctica72.0°S
Coronal holes

Coronal holes are areas on the Sun where fast solar wind is able to escape into space. These resulting high speed solar wind streams sometimes have the potential to produce minor to moderate geomagnetic storms. The image above can be used to spot any coronal holes facing our planet right now.
Solar Flares

A solar flare is an explosion on the surface of our Sun which occurs when magnetic field lines from sunspots tangle and erupt. Strong solar flares can launch clouds of solar plasma (coronal mass ejections) into space which cause enhanced auroral displays if aimed at our planet. Above you will find an image of the Sun right now which can be used to pinpoint the location of an ongoing solar flare.
Solar X-ray Flux
X-ray flux data is unavailable right now.
X-ray flux, 0.1-0.8 nm. The line takes the colour of the flare class it is in; peaks of M-class flares and above are labelled.

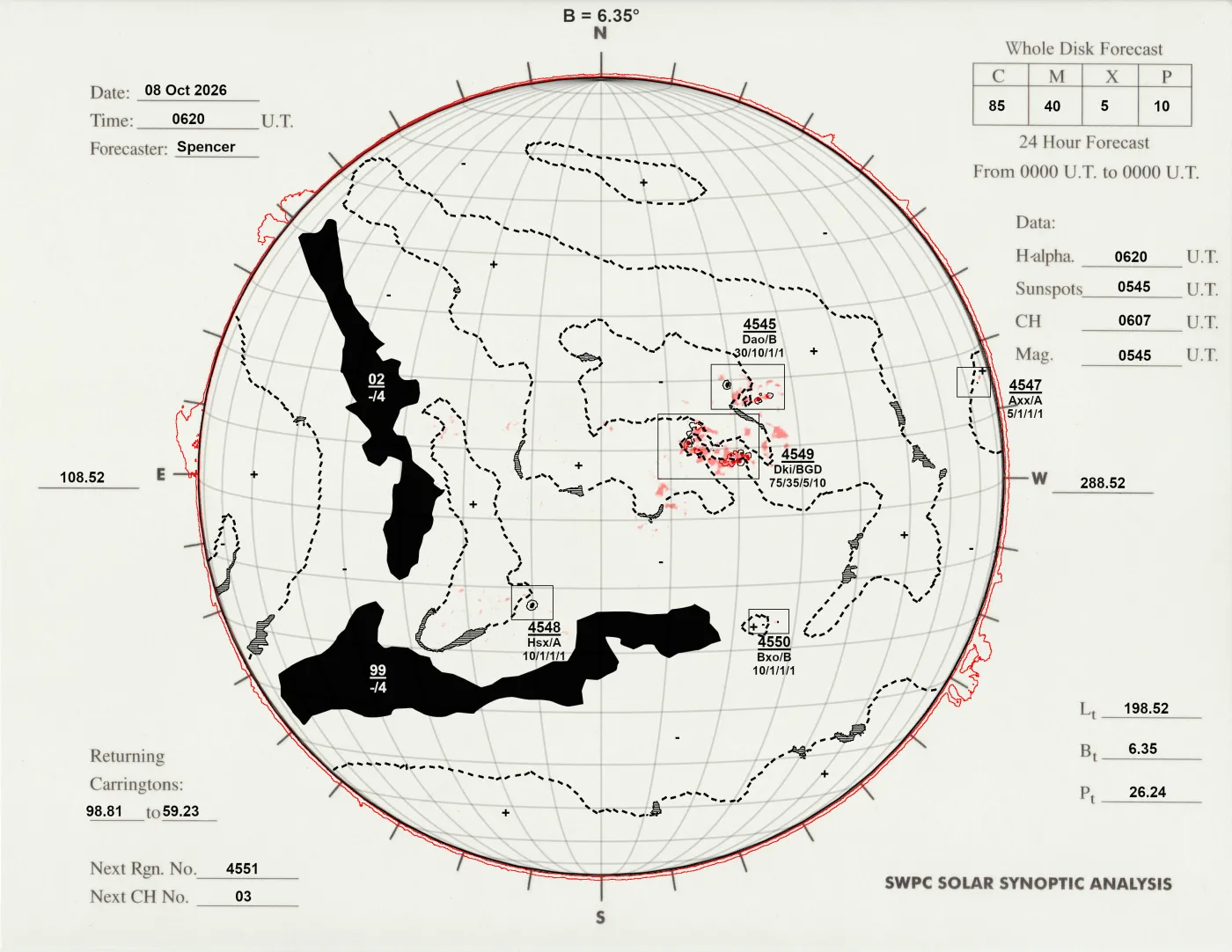

Sun Synoptic Map
